REDARC has released the next generation of its award-winning Tow-Pro Elite electronic brake controller.

This is the 3^rd generation of REDARC’s Tow-Pro brake controller with the original released in June 2014 and the acclaimed Tow-Pro Elite released in September 2015.

This next-generation Tow-Pro Elite retains the same name as its predecessor and continues to set the benchmark in trailer brake control technology which has seen it become Australia’s favourite and most trusted brake controller.

Like previous generations, the new Tow-Pro Elite provides users with the ability to swap between Proportional mode (inertia sensing) for highway driving conditions and User-Controlled mode for off-road driving.

The all new unit is able to operate both electric and electric/hydraulic trailer brakes and will operate from either 12V or 24V vehicle systems without the need for manual selection or extra components/ wiring. The unit is also ADR compliant when installed as directed.

Specifications

Input (Operating) Voltage	9 - 32VDC
Input Fuse Rating	30A (Cicruit Breaker)
Standby Current Draw	<5mA
Output System Voltage	12VDC
Output Current Rating (Cont.)	25A
Length (mm)	85
Width (mm)	100
Height (mm)	30
Weight	200g
Warranty	2 years

Brake Controllers

Red Arc Tow Pro Elite V3

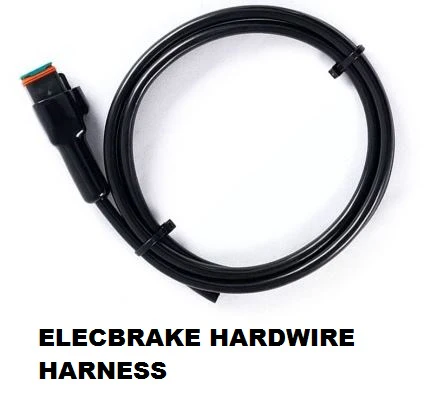

Elecbrakes Trailer Wired Lead
