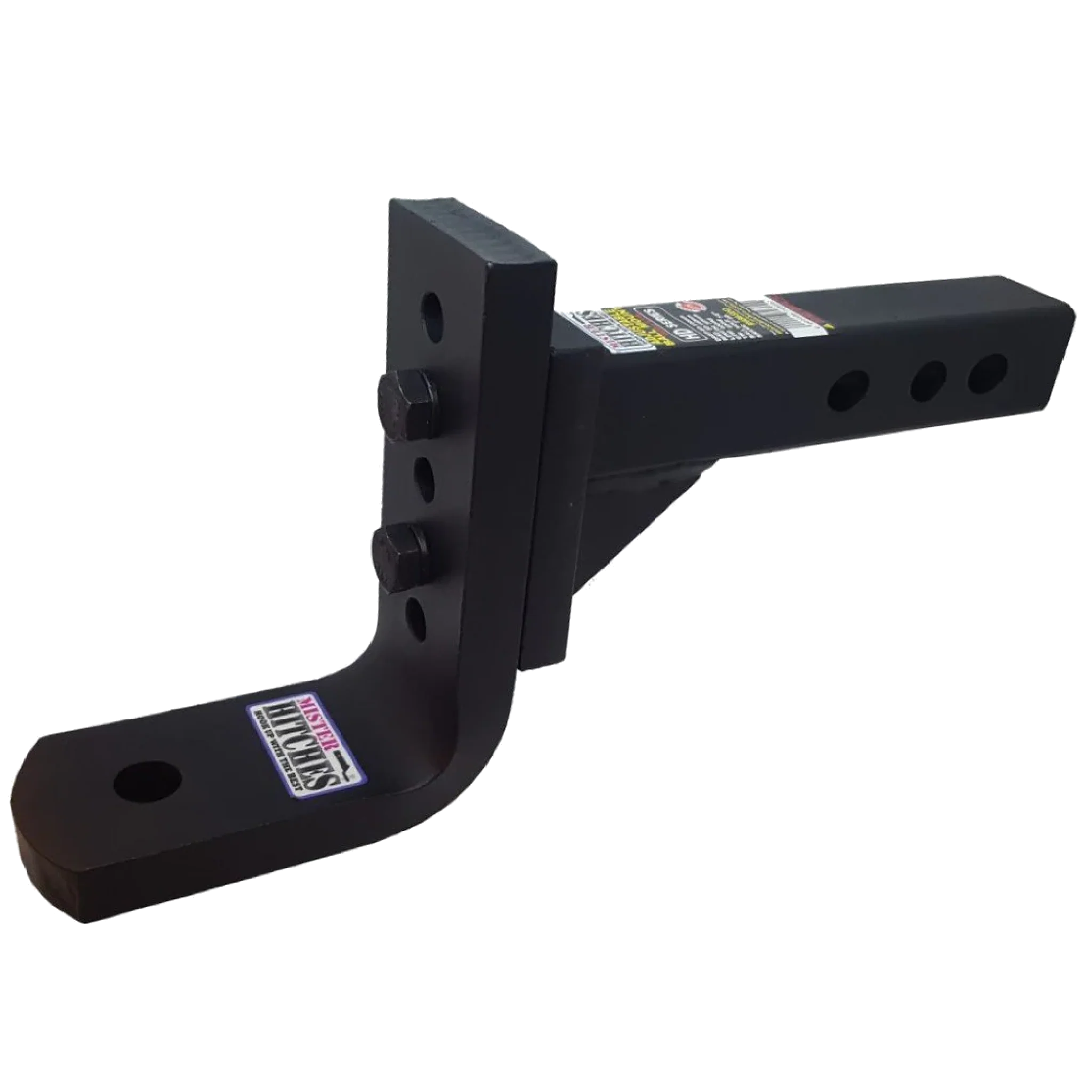

Extra Heavy Duty Adjustable Ballmount Rated to 4000kg 12 Stages

Extra Heavy Duty Adjustable Ballmount Rated to 4000kg 12 Stages

PLEASE NOTE: 3500kg when using 50mm Towball

Suits all 50 x 50 hitch receivers

• Adjustable & Reversible - 12 Stages
• 6 Stages of Drop - 80mm/110mm/130mm/140mm/160mm/190mm
• 6 Stages of Rise - 50mm/80mm/105mm/110mm/135mm/165mm
• 10mm Dual support gussets for added strength
• New model with 3 pin holes (Ranger short shank compatible)
• Uses 12.9 Grade High Tensile 16mm bolts
• 25mm x 75mm Heavy Duty ball platform
• Matt Black Seaguard Finish
• Robotic Welded for consistent quality
• CNC Machined for maximum accuracy
• Fits 2" x 2" Towbar receivers

Gross Trailer Weight: 4000kg

Tongue Weight: 400kg

Ball Hole Size: 7/8"

Max Drop: 190mm (taken from top of reciever)

Max Rise: 165mm (taken from top of reciever)

Lengths: (Centre of pin hole to centre of ball hole) 266mm / 305mm / 331mm

Pin Holes to end of shank: 50mm, 76mm, 115mm

End of Shank to Gusset: 164mm

Suits Stone Stomper and Most Couplings EG. D035

Measurements are Approxomate
